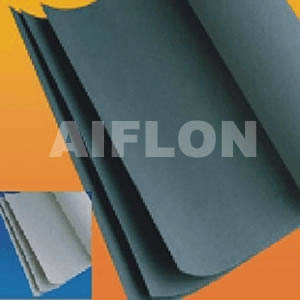

    Asbestos rubber beater sheet

    Asbestos rubber beater sheet

    Item: AIFLON 3000
    Description:
    Send Inquiry Now! Live Chat Now!

    Detailed Product Description: Asbestos rubber beater sheet

    CONSTRUCTION:
    Aiflon 3000 Asbestos emulsion sheet
    It is made from synthetic emulsion, asbestos fiber and filling material. Normal used for automobile, agricultural machinery, motorcycle, engineering machinery etc., suitable for lubricating oil under temperature 200¡æ
    Aiflon 3000V Vulcanized Asbestos beat sheet
    It has smooth face and high density compared with Style 3000
    PROPERTIES & APPLICATION:
    Gasket materials for explosion engine cylinder gaskets and chemical gaskets
    Suitable to sealing lubricating oil at highest temperature 250¡æ
    Item
    Style
    3000
    3000V
    Density          g/cm3
    0.9~1.1
    1.2~1.4
    Tensile strength   ¡ÝMpa
    2.5
    5
    Compressibility    ¡Ý%
    40¡À7
    20¡À5
    Recovery         ¡Ý%
    20
    40
    Stress relaxation   ¡Ü%
    30
    30
    In 20# aviation oil,
    150¡æ, 30min
    Oil absorption
    ¡Ü50%
    ¡Ü30%
    Thick. increase
    ¡Ü6%
    ¡Ü12%
    In water
    15~30¡æ, 5h
    Thick. increase
    ¡Ü6%
    ¡Ü12%
    Normal color: Grey, Black, White, other color on request
                                        Also available with anti-stick : 3000S, 3000VS
    or graphite coating : 3000G, 3000VG
    THICKNESS TOLERANCE:
    Item
    Tolerance
    In same sheet
    Thickness
    ¡Àmm
    mm
    0.5
    0.05
    0.06
    0.6-0.8
    0.06
    0.08
    1-2
    0.08
    0.08
    FORMS OF SUPPLY:

    Sheets

    Width:      500mm; 1000mm
    Length:     500mm; 1000mm; 1200; 1500mm
    Thickness:  0.4~2.0mm

    Cut gaskets ---G3000, G3000V

    Dimensions according to drawings or specifications.
