    Oil-resistant Non-asbestos sheet

    Oil-resistant Non-asbestos sheet

    Item: AIFLON 41
    Send Inquiry Now! Live Chat Now!

    Detailed Product Description: Oil-resistant Non-asbestos sheet

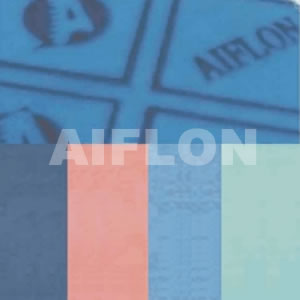

    Non-asbestos Sheet Aiflon Non-asbestos sheet is made from Kevlar fiber,natural rubber,filling material and dye ,comprssed and calendered under high temperature into a sheet eliminates asbestos-rubber sheet essentially and thoroughly. Oil-Resisting Non-asbestos Sheet Aiflon oil-resisting non-asbestos sheet is made from Kevlar fiber,synthetic rubber,filling material and dey,compressed and calendered underhigh temperature and pressure into a sheet form,it eliminates asbestos-rubber sheet essentially and thoroughly.

    Main Properties£º

    Item Non-asbestos Sheet Oil-Resisting Non-asbestos Sheet
    GS4100 GS4102 GS4104 GS4110 GS4112 GS4114
    Density g/cm³ 1.7-1.9 1.7-1.9 1.7-1.9 1.7-1.9 1.7-1.9 1.7-1.9
    Tensile strength Mpa 6 9 12.5 8 11 12
    Comperssibility¡Ý£¥ 12¡À5 12¡À5 12¡À5 12¡À5 12¡À5 12¡À5
    Recovery¡Ý£¥ 40 45 45 45 50 50
    Stress relaxation rate¡Ü£¥ 45 45 45 45 45 45
    Tmax:¡æ 200 300 400 200 300 350
    Pmax:Mpa 1.5 3.0 5.0 2.0 3.0 3.5
    Resistance to media Water,steam,fuel,gases,and many other media Oil fuel,gases,salt solutions and many other media.
    Normal Size Width£º1500mm , 1350mm ; Length£º1000mm , 1350 ,2000mm;Thickness£º0.5-5mm
    Normal colour

    Availabel with tin steel,copper,SS304etc.wire mesh insertion--GS 41**I
    Also available with anti-stick or graphite coating--GS 41**G
    Cut gasket styleGS 41**,Dimensions according to drawings or specifications and standards.
